4.3.1 Cyclotron Motion#

Prompts

Derive the cyclotron frequency \(\omega_c = qB/m\) from the Lorentz force. Why is it independent of particle energy?
Explain the classical Hall effect: how does the Hall voltage arise in a current-carrying conductor in a magnetic field?
What is the Hall resistance \(R_H = B/(nq)\)? How would you measure it experimentally?
The integer quantum Hall effect shows that conductance becomes quantized: \(\sigma_{xy} = \nu e^2/h\). Why is this quantization so precise, and what quantum phenomenon must explain it?
What is the magnetic length \(\ell_B = \sqrt{\hbar/(qB)}\)? How does it compare to typical atomic sizes?

Lecture Notes#

Overview#

The classical motion of a charged particle in a uniform magnetic field leads to cyclotron orbits—circular trajectories with a characteristic frequency independent of energy. This classical picture seems deceptively simple, but when combined with the Hall effect, it reveals a profound puzzle: under strong magnetic fields at low temperatures, the Hall conductance “locks in” to discrete quantized values, with a precision rivaling atomic standards. This quantization cannot be explained classically and demands quantum mechanics. Understanding cyclotron motion and the magnetic length scale \(\ell_B\) provides the foundation for Landau quantization and the quantum Hall effects—among the most important phenomena in condensed-matter physics.

Classical Cyclotron Motion#

Equations of Motion#

A charged particle with charge \(q\) and mass \(m\) in a uniform magnetic field \(\boldsymbol{B} = B\hat{z}\) experiences the Lorentz force:

\[m\boldsymbol{a} = q\boldsymbol{v} \times \boldsymbol{B}\]

Writing the acceleration in Cartesian components:

\[m\dot{v}_x = qv_yB, \quad m\dot{v}_y = -qv_xB, \quad m\dot{v}_z = 0\]

Motion parallel to \(\boldsymbol{B}\) is unaffected. For the perpendicular components, we can rewrite:

\[\ddot{v}_x + \omega_c^2 v_x = 0, \quad \ddot{v}_y + \omega_c^2 v_y = 0\]

where:

Cyclotron Frequency

\[\omega_c = \frac{qB}{m}\]

Key properties:

Independent of particle velocity or kinetic energy
Depends only on charge-to-mass ratio and field strength
Orbital period: \(T_c = 2\pi/\omega_c = 2\pi m/(qB)\) is also energy-independent
For electrons: \(\omega_c = eB/m_e\) (note: \(e < 0\) in SI; the sign is built into \(q\))

The general solution is circular motion in the \(xy\)-plane:

\[v_x(t) = v_\perp \cos(\omega_c t + \phi_0), \quad v_y(t) = v_\perp \sin(\omega_c t + \phi_0)\]

where \(v_\perp = \sqrt{v_x^2 + v_y^2}\) is the speed perpendicular to \(\boldsymbol{B}\) and \(\phi_0\) is an arbitrary phase.

Integrating to find position:

\[x(t) = x_0 + \frac{v_\perp}{\omega_c}\sin(\omega_c t + \phi_0), \quad y(t) = y_0 - \frac{v_\perp}{\omega_c}\cos(\omega_c t + \phi_0)\]

This describes a circular orbit centered at the guiding center \((x_0, y_0)\).

Cyclotron Radius and Orbital Period#

Cyclotron Radius (Larmor Radius)

The radius of the circular orbit is:

\[r_c = \frac{v_\perp}{\omega_c} = \frac{mv_\perp}{qB}\]

Physical meaning:

Particle spirals around the guiding center at frequency \(\omega_c\)
Motion parallel to \(\boldsymbol{B}\) is unaffected: \(v_z = \text{const}\)
Radius scales with perpendicular momentum: \(r_c \propto mv_\perp\)
Stronger magnetic fields confine orbits more tightly: \(r_c \propto 1/B\)

Orbital Period: Energy-Independent Timescale

The time for one complete orbit is:

\[T_c = \frac{2\pi}{\omega_c} = \frac{2\pi m}{qB}\]

Remarkable fact: \(T_c\) is completely independent of the particle’s kinetic energy or velocity. A slow particle and a fast particle orbit in circles of different radii, but they always take the same time to complete one loop.

This is why cyclotron accelerators work: all particles, regardless of energy, take the same time to traverse a semicircle. By applying a radiofrequency voltage synchronized to \(f_c = \omega_c/(2\pi)\), you can accelerate all particles in phase, building up their energy with each pass.

Classical Hall Effect#

When charge carriers (e.g., electrons) flow through a conductor in a perpendicular magnetic field, they are deflected by the Lorentz force. This creates a charge separation perpendicular to the current, producing a voltage called the Hall voltage.

Force Balance and Hall Voltage#

Consider a current flowing in the \(x\)-direction through a conductor in a magnetic field \(\boldsymbol{B} = B\hat{z}\). Electrons with drift velocity \(v_d\) in the \(-x\)-direction experience a Lorentz force in the \(-y\)-direction, causing them to accumulate on one edge. This charge accumulation creates an electric field \(E_y\) that opposes further accumulation. At equilibrium, the electric and magnetic forces balance:

\[qE_y = qv_d B \quad \Rightarrow \quad E_y = v_d B\]

This is the Hall electric field. The Hall voltage across width \(w\) is:

\[V_H = E_y \cdot w = v_d B w\]

Hall Resistance and Hall Coefficient#

For a conductor with \(n\) charge carriers per unit volume, the current density is \(j_x = nqv_d\), so \(v_d = j_x/(nq)\). The Hall resistivity is:

\[\rho_H = \frac{E_y}{j_x} = \frac{B}{nq}\]

This defines the Hall coefficient:

Classical Hall Coefficient

\[R_H = \frac{1}{nq}\]

The Hall resistivity is \(\rho_H = R_H B = B/(nq)\).

Physical meaning:

\(R_H\) is a material property that depends on carrier density \(n\) and charge \(q\)
Measurement of \(R_H\) reveals the density and sign of charge carriers (electrons vs holes)
Hall conductance: \(\sigma_{xy} = 1/\rho_H = nq/B\)
Classically, Hall conductance varies continuously with \(B\)

Note: Classical Expectation vs Quantum Reality

Classically, the Hall conductance \(\sigma_{xy} = nq/B\) should decrease smoothly as the magnetic field increases. However, experiments at low temperature and high field show something completely different: the conductance jumps in discrete steps, remaining constant (independent of \(B\)) over finite ranges. This is the integer quantum Hall effect—exact quantization to extraordinary precision. Classical physics cannot explain it.

Integer Quantum Hall Effect: A Window to Quantization#

At low temperature (typically below 4 K) and strong magnetic field (several Tesla), the Hall conductance exhibits a stunning phenomenon:

Integer Quantum Hall Effect

The Hall conductance becomes quantized in integer units of \(e^2/h\):

\[\sigma_{xy} = \nu \frac{e^2}{h}\]

where \(\nu = 1, 2, 3, \ldots\) is the filling factor (number of occupied Landau levels).

Key features:

Quantization is exact to parts per billion—better than any classical physical parameter
Conductance is independent of sample details (geometry, disorder, purity)

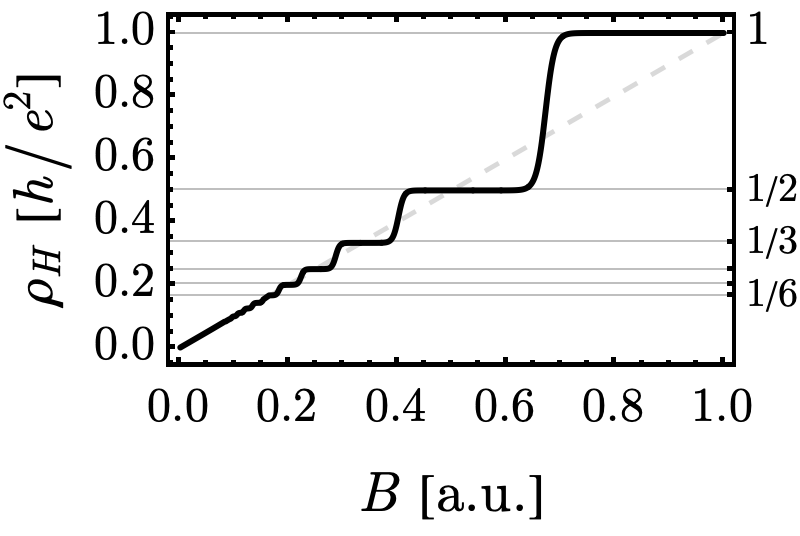

Resistance plateaus appear in Hall resistance \(R_{xy} = h/(\nu e^2)\)
Simultaneously, the longitudinal resistance \(R_{xx}\) drops to nearly zero on the plateaus
Discovery (von Klitzing, 1980) was so precise it is now used to define electrical resistance standards

The Quantum Puzzle

The classical Hall effect predicts \(\sigma_{xy} = nq/B\), which is continuous in \(B\). But experiments show discrete plateaus. The only way to explain this is:

The magnetic field quantizes electron motion into Landau levels (discrete energy states)
Each Landau level can hold a fixed number of electrons (set by its degeneracy)
When the Fermi level lies between Landau levels, no states are available for conduction, suppressing disorder-induced scattering
This explains both the quantization and the extraordinary precision

These ideas are developed fully in §4.3.2 Landau Quantization.

Magnetic Length: The Quantum Scale#

In a strong magnetic field, the quantum mechanical extent of a particle’s wavefunction is set by the magnetic length, a characteristic length scale that emerges from the uncertainty principle and the magnetic field:

Magnetic Length

\[\ell_B = \sqrt{\frac{\hbar}{qB}}\]

Physical interpretation:

Characteristic size of a quantum wavefunction in a magnetic field
Plays the role of lattice constant in condensed-matter systems
Independent of particle mass; depends only on charge and field strength
For electrons in a 1 T field: \(\ell_B \approx 26\) nm
For electrons in a 10 T field: \(\ell_B \approx 8\) nm

The magnetic length can be understood from the uncertainty principle. In the lowest Landau level, the minimum uncertainty in position is:

Derivation: Magnetic Length from Uncertainty

In a magnetic field, the canonical momentum \(\boldsymbol{\pi} = \boldsymbol{p} - q\boldsymbol{A}\) does not commute with position. The commutation relations lead to minimum uncertainty relations:

\[\Delta x \, \Delta y \sim \hbar / (qB)\]

With equal uncertainty in both perpendicular directions, \(\Delta x \approx \Delta y \approx \ell_B\):

\[\ell_B^2 \sim \frac{\hbar}{qB}\]

The precise coefficient (which gives the factor of 1 without a numerical prefactor) comes from detailed quantum mechanical analysis of the lowest Landau level. The result is \(\ell_B = \sqrt{\hbar/(qB)}\).

Discussion

Consider a quantum particle in a very strong magnetic field compared to two limits:

(a) For an electron in a 10 T magnetic field, compute \(\ell_B\) in nanometers. Compare this to the Bohr radius \(a_0 \approx 0.53\) Å. In what sense is the quantum wavefunction “squeezed”?

(b) In the quantum Hall regime, the magnetic length becomes the relevant length scale. Explain why the degeneracy of each Landau level is of order \(A/\ell_B^2\), where \(A\) is the sample area.

(c) The classical cyclotron radius is \(r_c = mv_\perp/(qB)\). For an electron in the lowest Landau level, the “typical” momentum is \(p \sim \hbar/\ell_B\). Show that \(r_c \sim \hbar\omega_c/(\hbar/\ell_B) = \ell_B \omega_c/\omega_c\), and relate this to the expected orbital size in quantum mechanics.

Summary#

Cyclotron frequency \(\omega_c = qB/m\) is a universal property of the magnetic field, independent of particle energy. The orbital period \(T_c = 2\pi/\omega_c\) is constant, which powers cyclotron accelerators.
Cyclotron radius \(r_c = mv_\perp/(qB)\) is proportional to perpendicular momentum; stronger fields confine particles to smaller orbits.
Classical Hall effect arises from Lorentz force balance: carriers accumulate on one edge until the electric field balances the magnetic deflection. Hall conductance \(\sigma_{xy} = nq/B\) is continuous in field strength classically.
Integer Quantum Hall Effect shows that at low \(T\) and high \(B\), the Hall conductance quantizes in exact units of \(e^2/h\), with precision rivaling atomic clocks. This cannot be explained classically; it reveals the discrete Landau level structure of quantum electrons in strong fields.
Magnetic length \(\ell_B = \sqrt{\hbar/(qB)}\) sets the size scale of quantum wavefunctions in a magnetic field. It emerges from the uncertainty principle and is independent of particle mass.

Homework#

1. Starting from Newton’s second law for a charged particle in a uniform magnetic field \(\boldsymbol{B} = B\hat{z}\), derive the cyclotron frequency \(\omega_c = qB/m\). Show that the perpendicular velocity components satisfy:

\[\frac{\mathrm{d}v_x}{\mathrm{d}t} = \omega_c v_y, \quad \frac{\mathrm{d}v_y}{\mathrm{d}t} = -\omega_c v_x\]

Then verify that \(v_x(t) = v_\perp\cos(\omega_c t)\), \(v_y(t) = v_\perp\sin(\omega_c t)\) is a solution.

2. An electron orbits in a magnetic field \(B = 0.5\) T with cyclotron radius \(r_c = 1\) mm.

(a) Calculate the perpendicular velocity \(v_\perp\).

(b) Find the perpendicular kinetic energy \(E_\perp = \frac{1}{2}mv_\perp^2\) in eV.

(c) The cyclotron period is \(T_c = 2\pi m/(eB)\). Show that \(T_c\) is independent of \(v_\perp\) and \(E_\perp\), and calculate its value for an electron.

3. A classical cyclotron accelerator uses a radiofrequency voltage to accelerate protons. Explain why all protons, regardless of their energy, spend the same time in each semicircular orbit. How does this fact enable synchronous acceleration?

4. In a Hall effect measurement, a copper wire carries current \(I = 10\) A in the \(x\)-direction. A perpendicular magnetic field \(B = 1\) T is applied in the \(-z\) direction. The wire has width \(w = 2\) cm (in the \(y\)-direction).

(a) Sketch the configuration. In which direction does the Lorentz force push electrons? On which edge do electrons accumulate?

(b) Derive the Hall electric field \(E_H\) in terms of the drift velocity \(v_d\), using force balance.

(c) If the electron density in copper is \(n = 8.5 \times 10^{28}\) m\(^{-3}\), calculate the drift velocity and the Hall voltage \(V_H = E_H \cdot w\).

5. The Hall coefficient is \(R_H = 1/(nq)\), where \(n\) is the carrier density and \(q\) is the charge.

(a) For a metal with \(n = 10^{23}\) m\(^{-3}\), calculate \(R_H\) in SI units (m\(^3\)/C).

(b) A semiconductor has \(R_H = +8.5 \times 10^{-11}\) m\(^3\)/C. Is the dominant carrier type electron or hole? Explain the sign.

(c) Could a material with mixed electrons and holes have \(R_H = 0\)? What would this imply about the relative densities and mobilities?

6. For an electron in a strong magnetic field, the magnetic length is \(\ell_B = \sqrt{\hbar/(eB)}\). Calculate \(\ell_B\) in nanometers for:

(a) \(B = 1\) T (weak laboratory field)

(b) \(B = 10\) T (strong magnet)

Compare each result to the Bohr radius \(a_0 = 0.53\) Å.

7. The cyclotron radius \(r_c = mv_\perp/(qB)\) depends on momentum, while the magnetic length \(\ell_B = \sqrt{\hbar/(qB)}\) does not.

(a) For a 1 keV electron in a 1 T field, calculate both \(r_c\) and \(\ell_B\).

(b) Express the ratio \(r_c/\ell_B\) in terms of the electron momentum \(p\) and \(\hbar\).

(c) In the quantum regime, what does the inequality \(r_c \ll \ell_B\) suggest about the validity of the classical cyclotron picture?

8. In the integer quantum Hall regime, the Hall conductance is quantized as \(\sigma_{xy} = \nu e^2/h\) where \(\nu\) is an integer. The classical prediction is \(\sigma_{xy} = ne/B\), which is continuous in \(B\).

(a) For \(n = 10^{15}\) m\(^{-2}\) (electrons per unit area) and \(B\) varying from 0.1 to 10 T, sketch how the classical Hall conductance \(\sigma_{xy}^{\mathrm{classical}} = ne/B\) varies with \(B\).

(b) By contrast, the quantum Hall conductance shows plateaus at \(\sigma_{xy} = e^2/h\) (when \(\nu=1\)), \(\sigma_{xy} = 2e^2/h\) (\(\nu=2\)), etc. Explain qualitatively why discrete Landau levels with fixed degeneracy would produce quantized conductance values.

9. Show that the classical Hall resistivity \(\rho_H = B/(nq)\) has dimensions of resistance. Why is the Hall effect a more direct probe of carrier density than simple resistivity?

10. (Challenge) In a regime where magnetic length \(\ell_B\) is very small, quantum mechanical effects become dominant. Estimate the ratio of Landau level spacing to thermal energy \(k_B T\) for:

(a) An electron at \(B = 1\) T and \(T = 1\) K. (Use \(\hbar\omega_c = \hbar eB/m_e\).)

(b) An electron at \(B = 10\) T and \(T = 0.1\) K.
